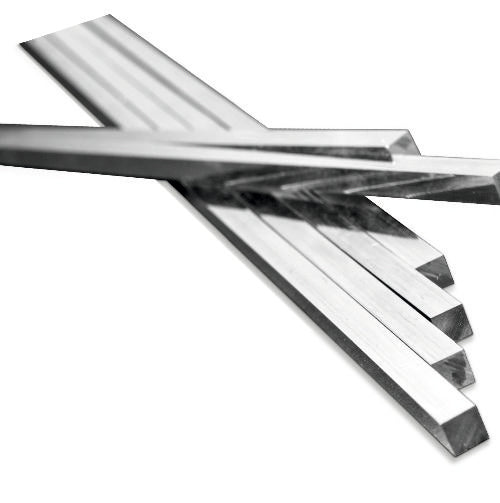

Key Rods/Key Bar/ Parallel Keys - 1 feet (300 mm Lengths) - Polished & Buffed

Parallel Keys (Key Rods / Key Bars) – IS 2048 / DIN 6885 | 300 mm Lengths

Parallel Keys (also called Key Rods or Key Bars) are precision-machined rectangular keys used to transmit torque between a shaft and a hub (pulley, gear, sprocket, or coupling). Supplied in 300 mm (1 foot) polished lengths, they can be cut to the required key length on-site. Manufactured to IS 2048 / DIN 6885 standards for dimensional accuracy and interchangeability.

• Material: Mild steel / EN8 carbon steel (bright drawn)
• Standard: IS 2048 / DIN 6885
• Length: 300 mm (approx. 1 foot) per piece
• Available Cross-Sections: 3×3 mm to 28×16 mm (22 sizes)
• Finish: Bright / polished

Typical Applications

• Keyway drives on pulleys, gears, sprockets, and couplings
• Gearbox and motor shaft assemblies
• Conveyor and pump drives
• Any shaft-hub connection requiring positive torque transmission

Sold per 300 mm length. Select the cross-section (width × height) matching your shaft keyway dimensions.
